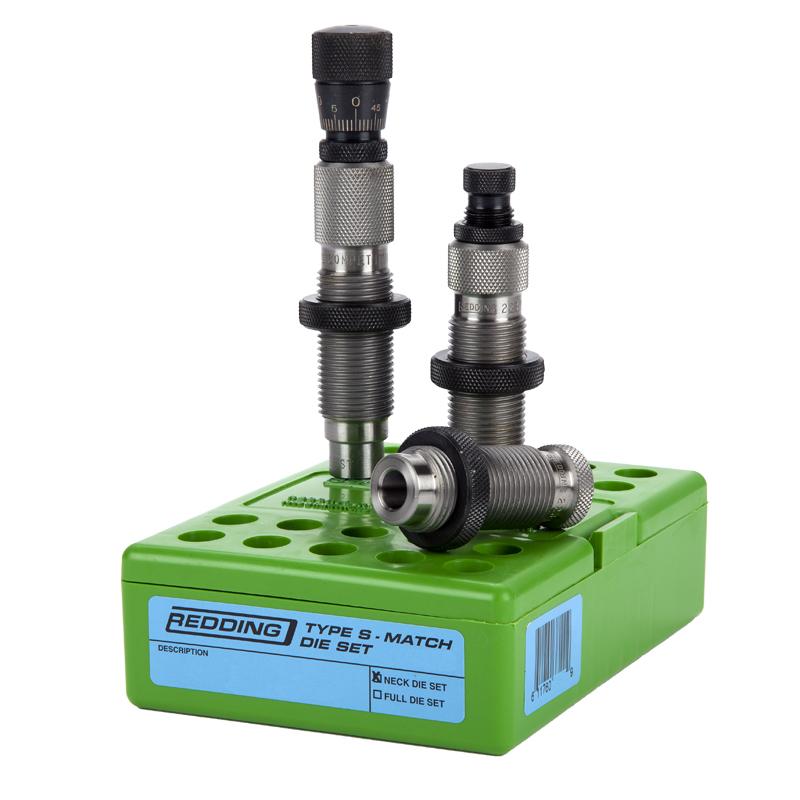

Redding Type S-Match Bushing Neck Die Set, 223 WSSM

by REDDING
SKU RED-38295
Save 10%
Original Price £381.70
Current Price £343.55

Notify me when back in stock

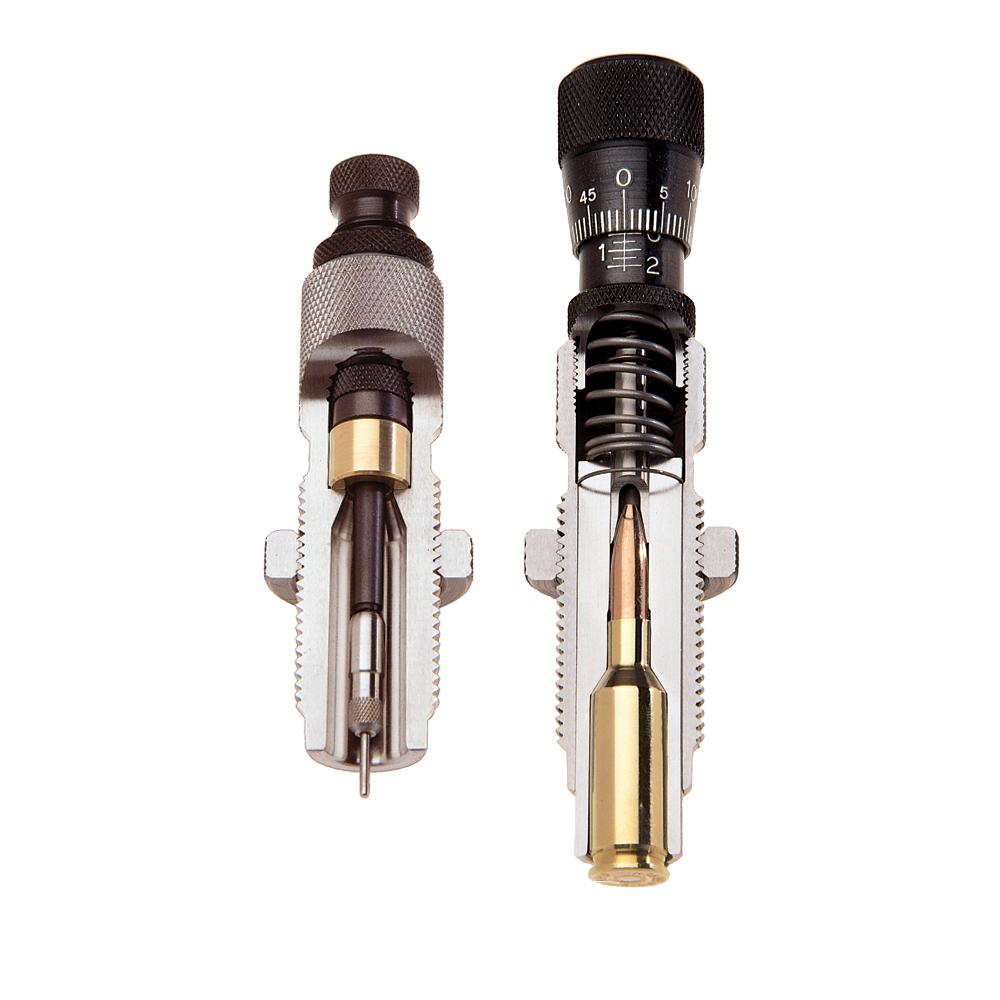

Type S - Bushing Style Neck Sizing Die
Provides reloaders with a simple means to precisely control case neck size and tension.

  • Uses interchangeable sizing bushings available in .001" increments.
  • The adjustable decapping rod allows positioning the bushing to resize only a portion of the neck length if desired.
  • Concentricity is enhanced by the ability of the resizing bushing to self-centre on the case neck.
  • The decapping rod is supplied with a standard size button. This is especially useful for reloaders who are using commercial brass as is.
  • A decapping pin retainer is also supplied with most Type S - Bushing Dies except 17 and 20 Cal. This enables neck sizing without the use of the size button for those who sort and/or turn case necks for uniformity.

Body Die

Body Dies are designed to full length resize the case body and bump the shoulder position for proper chambering without disturbing the case neck. They are made without internal parts and intended for use only to resize cases which have become increasingly difficult to chamber after repeated firing and neck sizing.

Competition Bullet seating Die
This patented design quickly established itself as the “state of the art” in straigh tline bullet seaters and beat the concentricity problems inherent in all other seating dies of this type.

Tighter manufacturing tolerances were made possible due to the details of the floating seating stem system. The bullet guide to seating stem fit is so precise that the seating stem can actually be demonstrated to “float” on a column of air. The seating stem is precision ground to exactly match the bullet diameter.

Technical Information

Material:
Case Hardened Steel

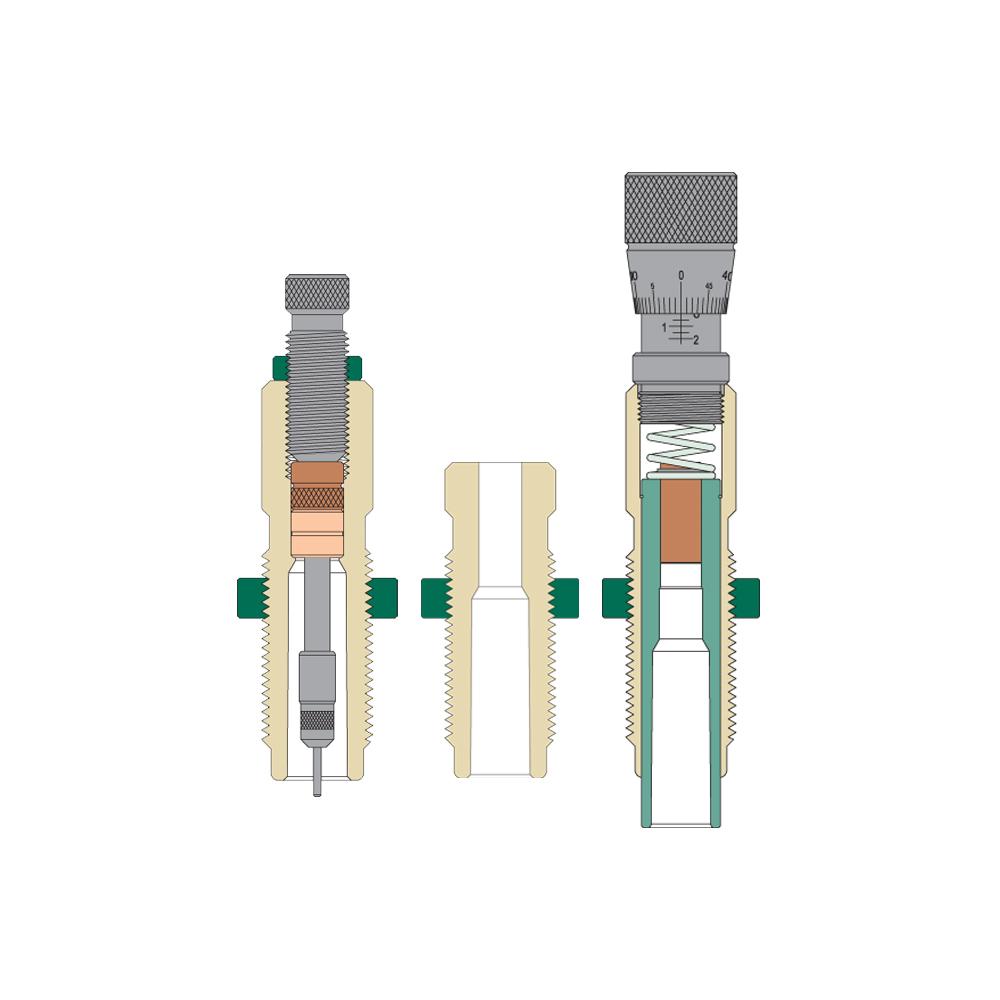

Die Types Included:

Type S - Neck Bushing Die (with decapping / expander unit)
Body Die
Competition Bullet Seating Die

Accessories included:
Plastic Storage Case

Notes: Shell holder Not Included
