Redding Type S Elite Bushing Die Set, 6.5 Creedmoor

by REDDING
SKU RED-60446
Save 10%
Original Price £244.42
Current Price £220.00

Notify me when back in stock

The Redding, Type-S Elite die set is a direct result of customer feedback and is available for 85 different cartridges.

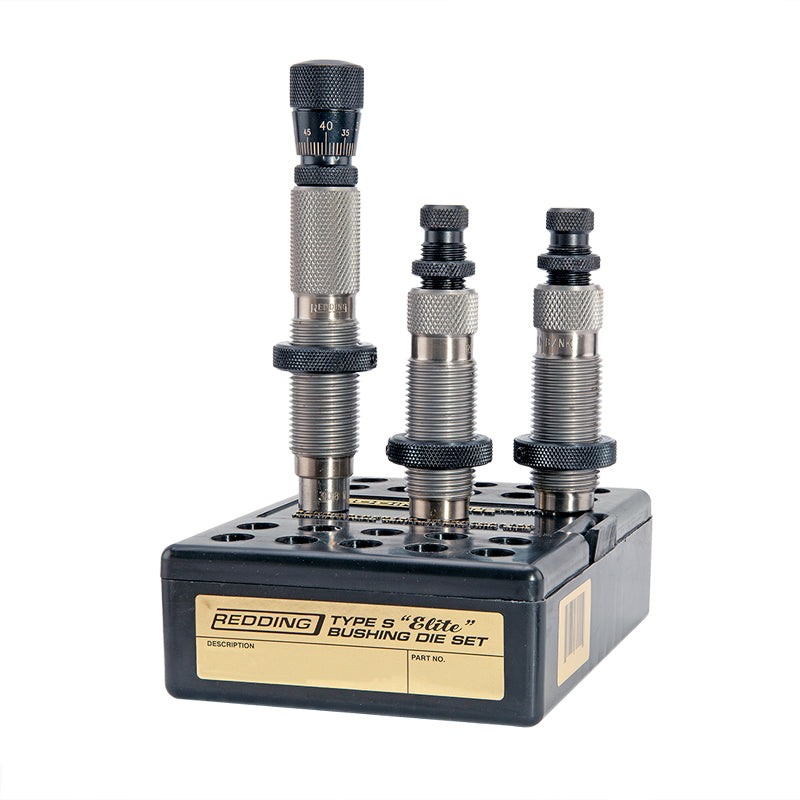

The Type-S Elite die set is comprised of a Type S Bushing Full Die, a Type S Bushing Neck Die and the unparalleled Redding Competition Seating Die. All Type-S dies use an interchangeable bushing to control neck diameter and tension to an increment of 0.001”. Redding neck sizing bushings are available in hardened steel but also are available with a TIN (Titanium Nitride) coating for even greater lubricity. This allows the handloader complete control and precision when setting the appropriate neck tension without fear of over working the brass in the case neck. These bushings are also free-floating to self-centre on the case neck for a higher degree of sizing accuracy. These features provide not only an enhanced degree of control but significant improvements to consistency and accuracy of the final loaded rounds.

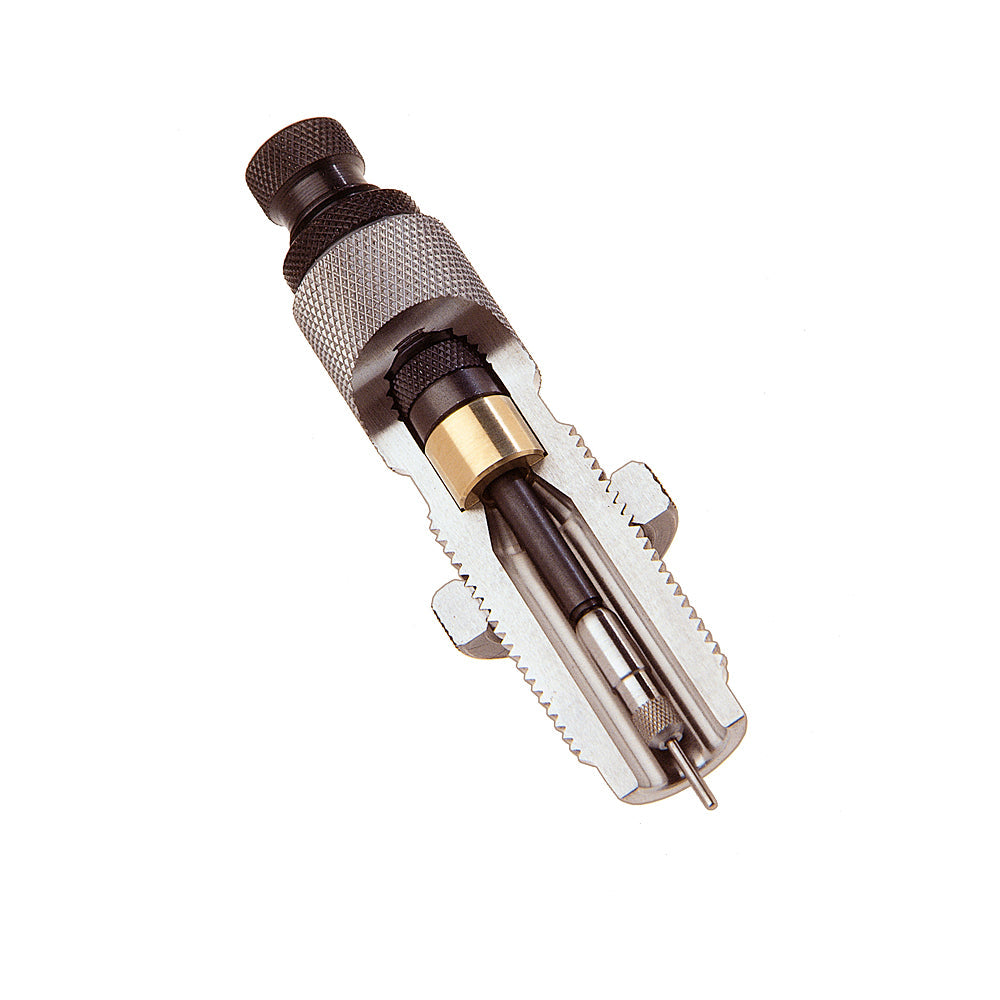

Type-S - Bushing Style Full Length Sizer Die
Provides reloaders with a simple means to precisely control case neck size and tension.

  • Uses interchangeable sizing bushings available in .001" increments.
  • The adjustable decapping rod allows positioning the bushing to resize only a portion of the neck length if desired.
  • Concentricity is enhanced by the ability of the resizing bushing to self-centre on the case neck.
  • The decapping rod is supplied with a standard size button. This is especially useful for reloaders who are using commercial brass as is.
  • A decapping pin retainer is also supplied with most Type-S - Bushing Dies except 17 and 20 Cal. This enables neck sizing without the use of the size button for those who sort and/or turn case necks for uniformity.

Type-S - Bushing Style Neck Sizer Die
Provides reloaders with a simple means to precisely control case neck size and tension.

  • Uses interchangeable sizing bushings available in .001" increments.
  • The adjustable decapping rod allows positioning the bushing to resize only a portion of the neck length if desired.
  • Concentricity is enhanced by the ability of the resizing bushing to self-centre on the case neck.
  • The decapping rod is supplied with a standard size button. This is especially useful for reloaders who are using commercial brass as is.
  • A decapping pin retainer is also supplied with most Type-S - Bushing Dies except 17 and 20 Cal. This enables neck sizing without the use of the size button for those who sort and/or turn case necks for uniformity

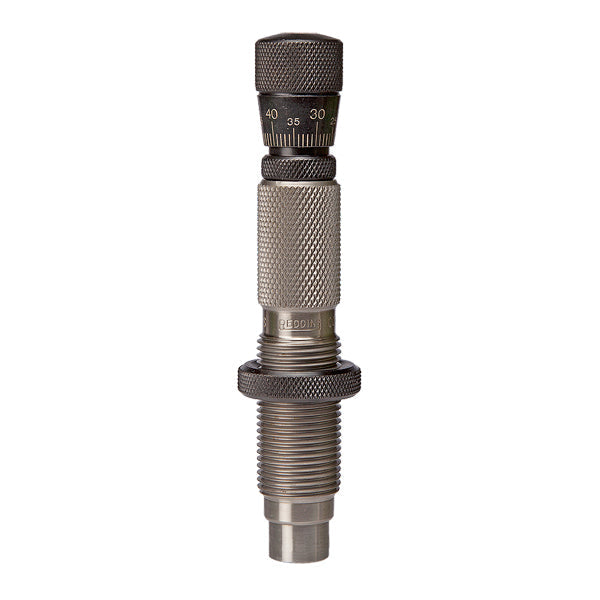

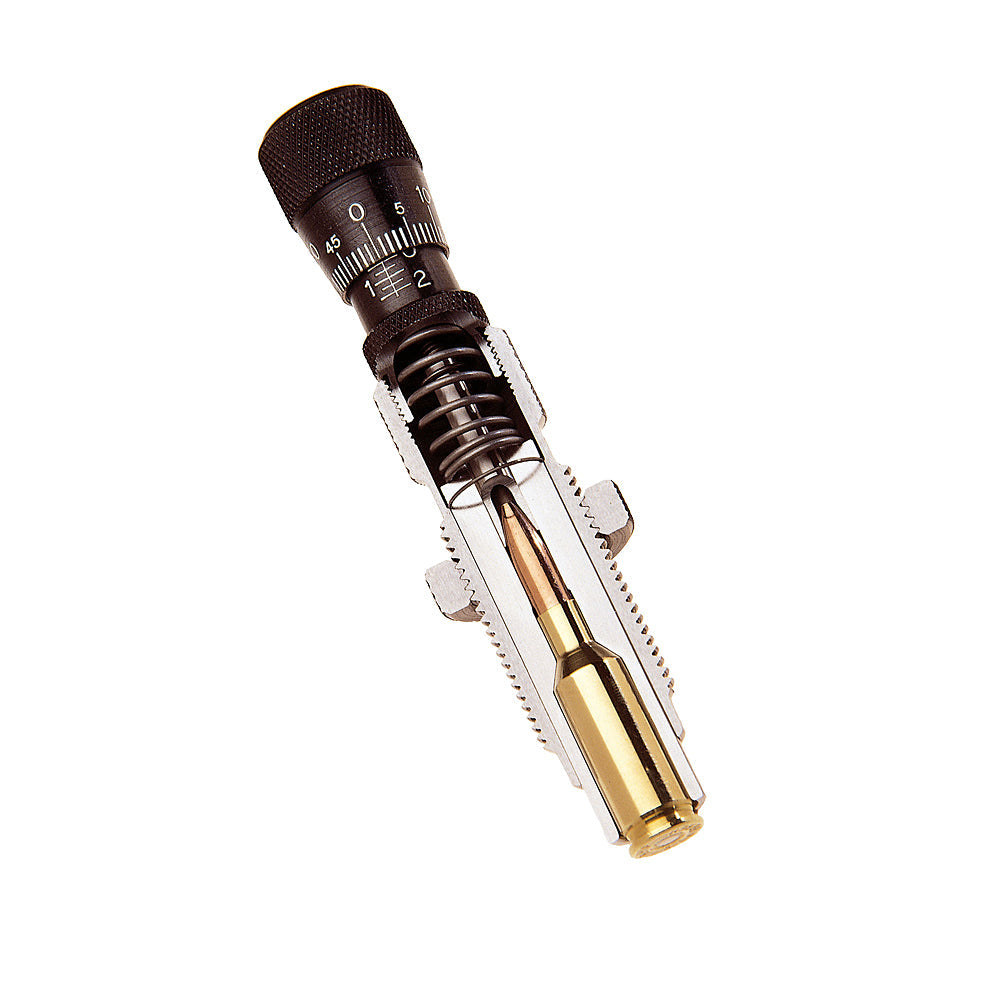

Competition Micrometer Bullet Seater Die
This patented design quickly established itself as the "state of the art" in straight line bullet seaters and beat the concentricity problems inherent in all other seating dies of this type.

Tighter manufacturing tolerances were made possible due to the details of the floating seating stem system. The bullet guide to seating stem fit is so precise that the seating stem can actually be demonstrated to "float" on a column of air. The seating stem is precision ground to exactly match the bullet diameter.

Alignment and accuracy are enhanced by the cartridge case and bullet being completely supported and aligned in a close fitting, precision ground sleeve before the bullet seating begins.

The micrometer is calibrated in .001" increments for precise seating depth and is infinitely adjustable. The micrometer also has a feature that allows you to re-set it to your favorite seating depth.

Technical Information
Material:
Case Hardened Steel

Die Types Included:

Type-S - Full Length Bushing Sizer Die (with decapping / expander unit)
Type-S - Neck Bushing Sizer Die (with decapping / expander unit)
Competition Micrometer Bullet Seating Die

Accessories included:
Plastic Storage Box and Spare Decapping Pin

Notes: Shell holder and Neck Sizing bushing Not Included
